3000 gallon steel tank 3 compartment
[3khcstank]

  • 3khcspres01
  • 3khcspres02
  • 3khcspres03
  • 3khcspres04
  • 3khcspres05
  • 3khcspres06
  • 3khcspres07
Click image to enlarge
Quantity:
Ask a Question

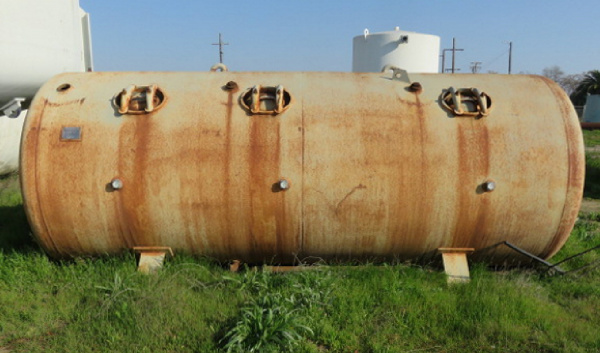

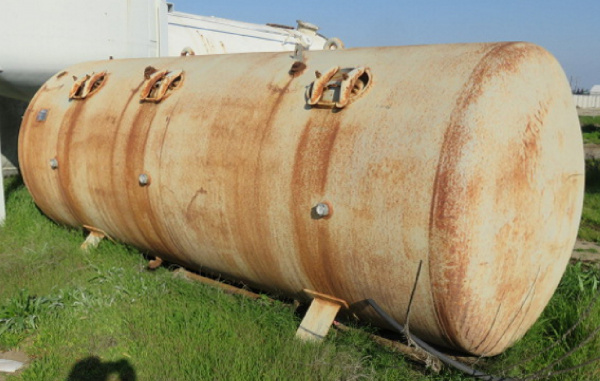

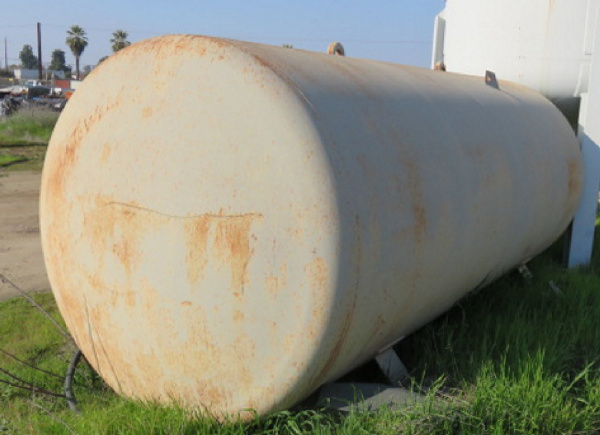

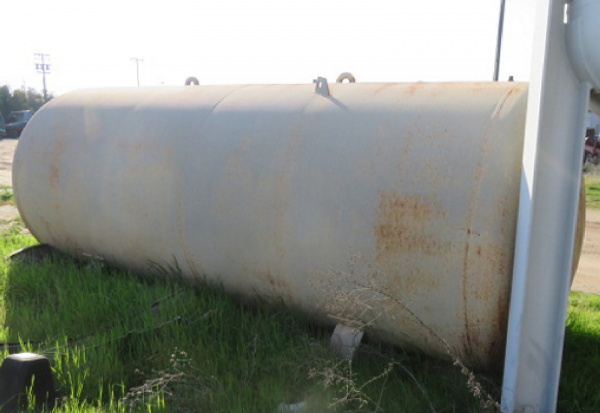

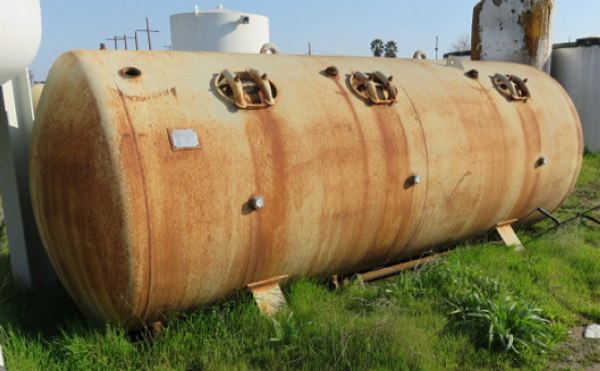

  • 3,000 gallon horizontal carbon steel 3 compartment storage tank
  • Is pressure rated to 40 PSI @ 650° F.
  • Tank measures 72” in diameter X 165” long on the straight side with 16” deep dished heads.

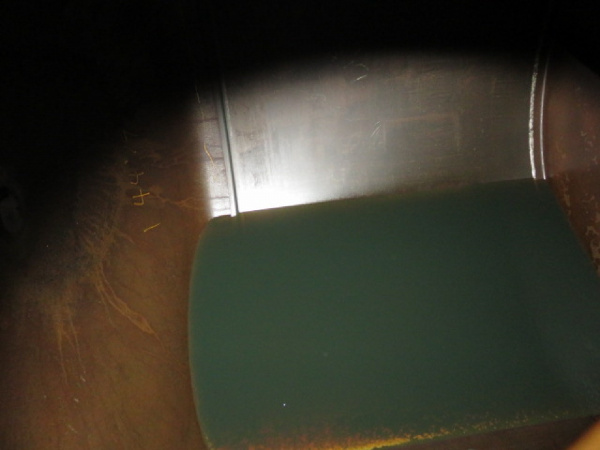

  • Each compartment has an 11” X 16” side man way, a 3” threaded tank fitting in the side, a side float gauge and a 2” threaded bottom drain fitting.

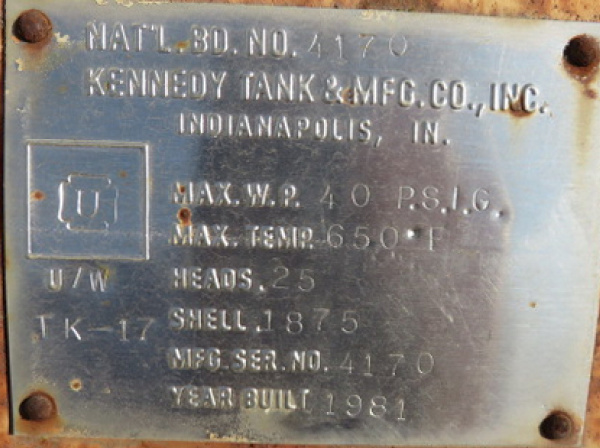

  • Tank was manufactured by Kennedy Tank & MFG Co. in 1981.
  • Has a MFG Serial No: 4170 and a National Board No: 4170.
  • Is supported with two steel saddles that are welded to the tank shell.
  • This tank is located in Fresno Ca.
  • Shipping quotes to your location are available upon request.
Specifications
  • Condition: Used
  • Gallons: 3000
  • Material: Carbon steel
